Zero relief cam indexer
A zero relief cam indexer for precision location of each arm.
Robotic Turntable Systems & Conveyors Part handling built for the robot
Turntables, conveyors, slide systems and robotic loading and unloading, designed for easy robot integration and programmed by our own team.
Robotic systems
Conveyors, turntables and slides
Our robotic systems carry parts to the robot and away again. We build chain-on-edge or monorail conveyors, pallet-style power and free conveyors, turntable systems and slide systems, and we add robotic loading and unloading where your line needs it.
Our electrical engineer handles robot programming (FANUC) and PLC programming in-house, and the same team designs the control panels and HMIs. Every system is designed in 3D, then built and pre-tested in our shop before installation.
- Chain-on-edge or monorail conveyors
- Pallet-style power and free conveyors
- Turntable systems and slide systems
- Robotic loading and unloading
- FANUC robot programming in-house
Turntables
Turntables designed for robot integration
Each turntable is built around the robot and the part, with fixtures made for the job.
Explosion proof motor
An explosion proof motor drives the table.
Arm identification
Limit switches identify each arm for the controls.
360° rotation
Full 360° rotation, with arm length and quantity built to your needs.
Custom end-of-arm fixtures
End-of-arm fixtures are custom built in our shop for each job.
Easy robot integration
Designed from the start for easy robot integration.
Robots on our lines
Robotic lines we have built
Material handling
Storage and handling beyond the cell
We also build vertical storage systems and material handling systems, and conveyors and robotic loading and unloading are available as options on our turnkey lines.
Large systems are assembled under the two overhead cranes in our 38,000 sq. ft. facility and pre-tested before they ship, then installed and started up on your floor.
- Vertical storage systems
- Material handling systems
- Robotic loading and unloading
- Installation, start-up and training
Questions
Robotics and turntable questions
Which robots do you work with?

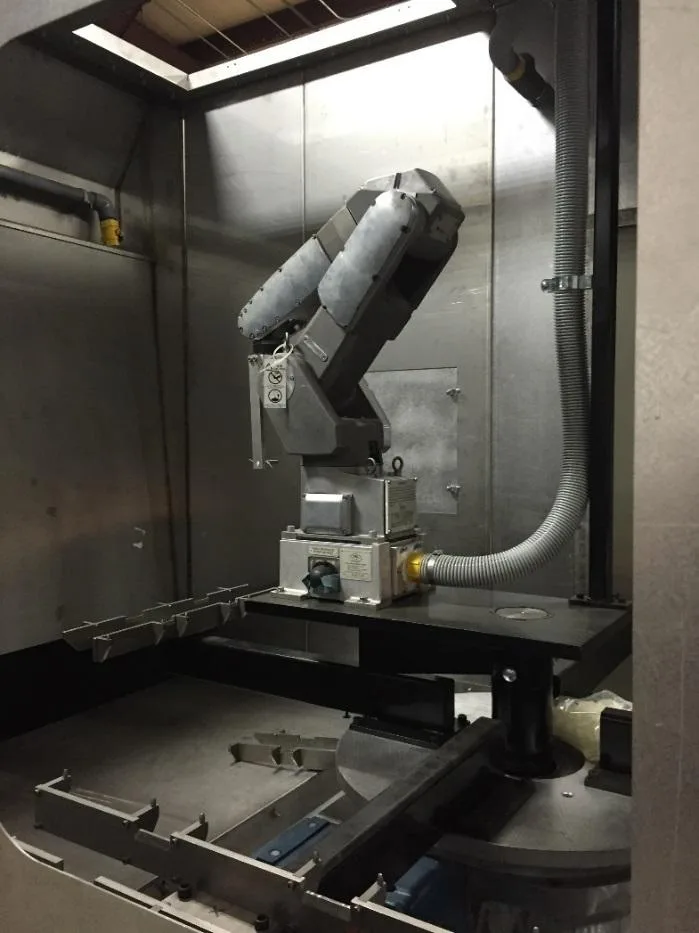

Our electrical engineer programs FANUC robots in-house. Our named lines include a FANUC Paint Mate 200iA/5L on the KI Industries paint and cure system and a Yaskawa Motoman paint robot on the North American Lighting anti-haze line.
Can a turntable be built for our parts?
Yes. Arm length and quantity are set to your needs, and end-of-arm fixtures are custom built for each job. The 4-arm turntable we built for North American Lighting was designed to paint one lens every 11 seconds.
What conveyors do you build?
Chain-on-edge or monorail conveyors, pallet-style power and free conveyors and slide systems, along with robotic loading and unloading, vertical storage and material handling systems. Call (734) 847-7004 to talk through your line.
