Anti-haze coating systems
Clean room booths with paint robots, water wash spray booths and turntables, with IR ovens to cure the coat.
Automotive Lighting Coating Systems Coating lines and masks for lamps and lenses
Turnkey anti-haze and hard coat systems, mask washers and masking tooling for head and tail lamp lines, designed in 3D and built and tested in our shop.
Automotive lighting
From lens coating to clean masks
We build the turnkey systems that coat head lamps, tail lamps and lenses: clean room booths with paint robots and turntables, anti-haze and hard coat lines with UV or thermal cure, and the IR, UV and convection ovens that cure the finish.
We also build the masks that protect head and tail lamps through painting and coating, and the washers that keep those masks clean. Our customers include lighting suppliers such as North American Lighting, Stanley Electric, Valeo and Automotive Lighting.
- Anti-haze booths and ovens
- Hard coat with UV or thermal cure
- Masks for head and tail lamps
- Automatic high pressure mask washers
What we build
For lighting lines
Every system is designed around your parts and built to your specifications.
Coating & curing
Hard coat lines
Hard coat with UV or thermal cure, plus color coat, flow coating and dip coating.
Curing ovens
UV, convection and IR ovens, batch or continuous, including annealing ovens.
Robotic turntables
Turntables with a zero relief cam indexer, 360° rotation and end-of-arm fixtures built for each job.
Lamp masks
Masks for head and tail lamps, designed from your 3D data and built in-house.
Mask washers
Solventless washers with robotic or fixed nozzles, from 100 to 8,000 PSI.
Project
Anti-haze booth & oven for North American Lighting
A turnkey system we built for North American Lighting in Paris, Illinois.
- Customer
- North American Lighting
- Location
- Paris, Illinois
- Paint robot
- Yaskawa Motoman
- Clean room
- Class 10,000, with automatic air shower
- Spray booth
- Water wash
- Air supply
- Full AMU (air make-up) supply
- Turntable
- 4-arm, designed to paint one lens every 11 seconds
- Oven
- 3-zone IR
As built for this project. Each system is designed to the customer’s parts and specifications.
Mask washing
A turnkey mask washer for North American Lighting
For North American Lighting we built an automatic high pressure mask washer that uses Challenge 4855 cleaning solution. Its four-station cleaning chamber accepts various mask and fixture sizes.
Spiral headers with non-clogging Vee Jet nozzles spray at up to 225 PSI, and two 40 kW electric heaters are built in. Every mask washer we build is designed to the customer’s needs, with robotic or fixed nozzles, no solvents and pressures from 100 to 8,000 PSI.
- Four-station cleaning chamber
- Spiral headers with non-clogging Vee Jet nozzles
- Sprays up to 225 PSI
- Two 40 kW electric heaters
From the shop
Lighting line equipment

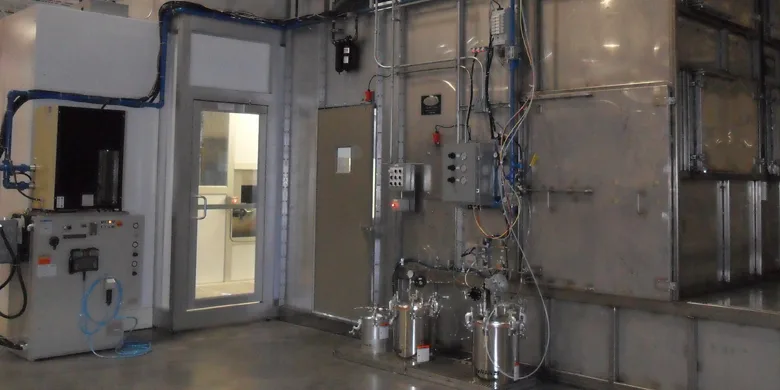

Coating booth with an air shower doorway, controls and pressure pots
Long white oven line with a mesh belt conveyor, access ladder and control panels
Mesh belt conveyor feeding into a white oven

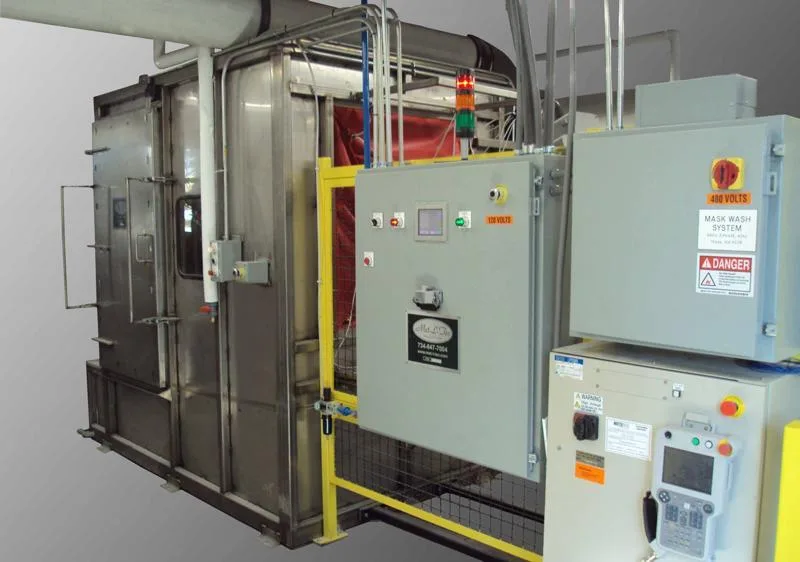

Stainless mask washing system with a robot teach pendant and control panels behind a yellow safety fence
Stainless spray headers and nozzles inside a mask washer
Stainless coating machine with a gray electrical cabinet in the assembly area
Questions
Lighting questions
How do you size a coating system for our parts?
We design each system around the customer’s parts, cycle time and specifications. For example, the anti-haze booth we built for North American Lighting uses a 4-arm turntable designed to paint one lens every 11 seconds.
Do you build hard coat systems with UV cure?
Yes. Our coating and curing systems include hard coat with UV or thermal cure, anti-haze coating, color coat, flow coating and dip coating, with UV, convection or IR ovens.
What pressures do your mask washers run at?
Our mask washers are built to each customer’s needs, from 100 to 8,000 PSI, with robotic or fixed nozzles and no solvents. The washer we built for North American Lighting sprays at up to 225 PSI with non-clogging Vee Jet nozzles.
